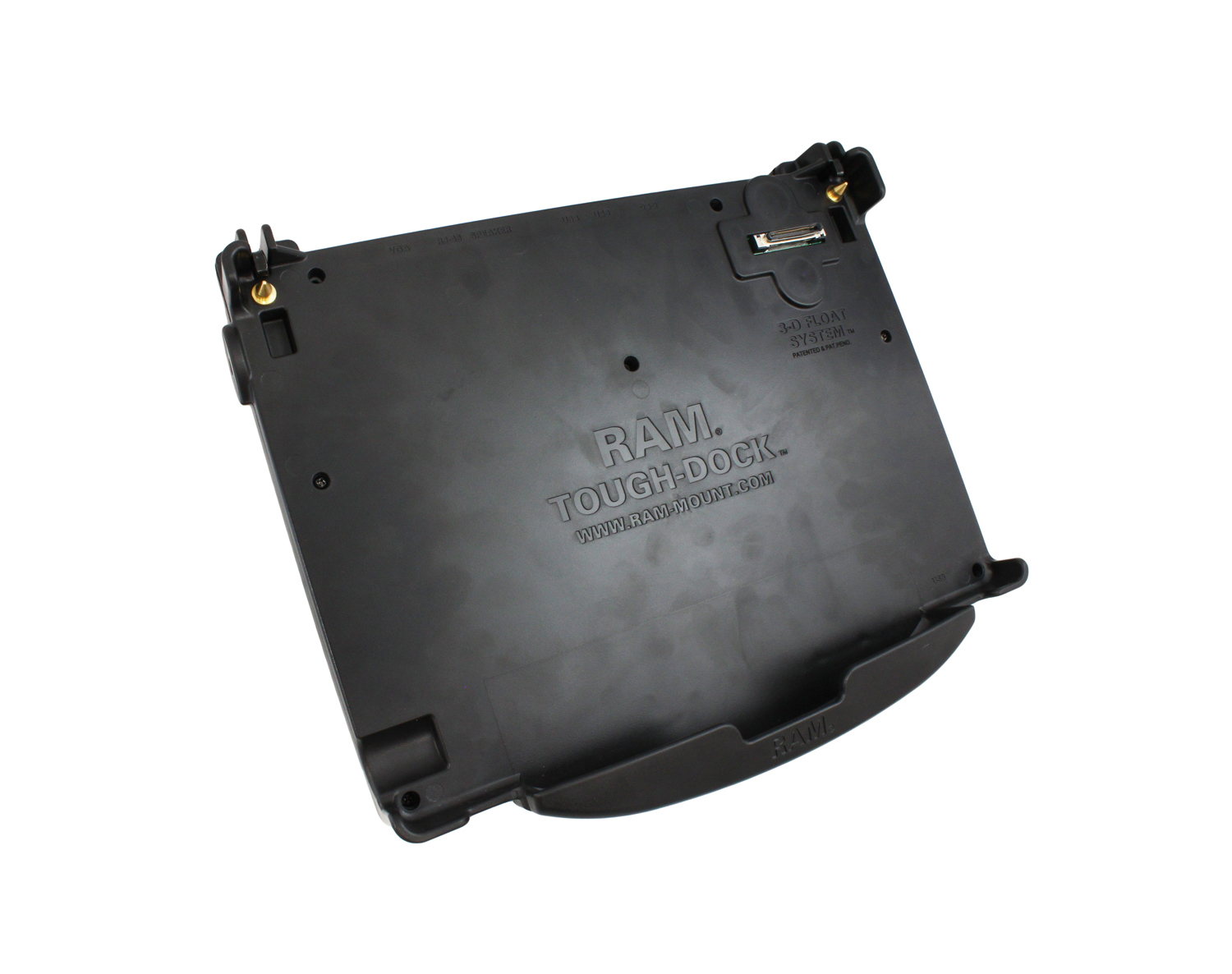

RAM Tough-Dock™ Composite Powered Dock with Port Replication for the Panasonic Toughbook CF-52

Brand RAM Mounts
Item #006789
Availability :Available on order - (14 Weeks)

RAM Tough-Dock™ Composite Powered Dock with Port Replication for the Panasonic Toughbook CF-52

Part No RAM-234-PAN7P

253.500KWD
  • PRODUCT DESCRIPTION

  • PRODUCT SPECIFICATIONS

  • APPLICATIONS

RAM Tough-Dock&trade   Powered Dock with port replication for the Panasonic Toughbook®  CF-52.





Port Replication:
(1 qty) RJ-45 LAN
(2 qty) DC Input
(4 qty) USB 2.0 on Replicator Board
(1 qty) USB 2.0 on front of Dock
(1 qty) VGA Output
(1 qty) DB-9 Serial Connection
(1 qty) Speaker Out

Standard Features:
Integrated Power Supply
Tamper Proof Lock
12 -30 Volt DC Input
Integrated Screen Support
Overcurrent / Surge Protection
Reverse Polarity Protection
Radio Frequency Isolation
Military Grade Construction

Warranty Information:
3 year warranty on electrical and electronic parts
Lifetime warranty on mechanical parts

Material:
High Strength Composite Enclosure

Note:
RAM RAM-2461U, 75mm x 75mm VESA ball/base adapter not included with purchase.

Material

  • High Strength Composite

Product Type

  • Holder

Device

  • Laptop

Product Line

  • Tough-Dock

Packaging

  • Retail Packaging

Device Brand

  • Panasonic

Device Model

  • Toughbook CF-52
